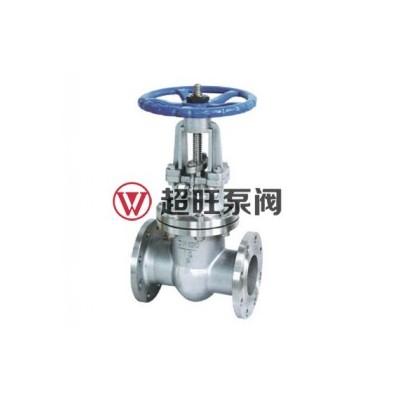

不锈钢阀门主要零件材质
| 零件名称 | ZG1Cr18Ni9T i304 CF8 |
ZGOOCr18Ni10 304L CF3 |
ZG1Cr18Ni12Mo 2Ti316 CF8M |
zgoocR17nI14mO2 316L CF3M |
WCB |
| 阀体/阀盖 | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | WCB |
| 闸板 | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | 1Cr3 |
| 阀杆 | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | 1Cr3 |
| 阀杆螺母 | 铝青铜 | ||||
| 填料 | PTFE编织 | PTFE编织 | PTFE编织 | PTFE编织 | 石墨 |
| 垫片 | 304+PTFE | 304L+PTFE | 316+PTFE | 316L+PTFE | 石墨+304 |
| 压盖 | OCr18Ni9 | OOCr18Ni10 | OOCr18Ni9Mo2 | OOCr18Ni10Mo2 | WCB |
| 螺栓 | 不锈钢 | 34GtMoA | |||
| 螺母 | 不锈钢 | 45 | |||
| 手轮 | 球墨铸铁、铸钢 | ||||
主要连接尺寸
| 型号 Type | 公称通径 DN(mm) |
尺寸（mm） | |||||||
| L | D | D1 | D2 | b-f | Z-φd | H | D0 | ||
| Z41W-16 | 15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-14 | 200 | 120 | |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-14 | 215 | 140 | |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-18 | 260 | 160 | |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-18 | 290 | 200 | |
| 50 | 250 | 160 | 125 | 100 | 16-3 | 4-18 | 345 | 220 | |
| 65 | 265 | 180 | 145 | 120 | 18-3 | 4-18 | 360 | 240 | |
| 80 | 280 | 195 | 160 | 135 | 20-3 | 8-18 | 385 | 280 | |
| 100 | 300 | 215 | 180 | 155 | 20-3 | 8-18 | 430 | 300 | |
| 125 | 325 | 245 | 210 | 185 | 22-3 | 8-18 | 520 | 320 | |
| 150 | 350 | 280 | 240 | 210 | 24-3 | 8-23 | 610 | 350 | |
| 200 | 400 | 335 | 295 | 265 | 26-3 | 12-23 | 765 | 400 | |
| 250 | 450 | 405 | 355 | 320 | 30-3 | 12-25 | 895 | 450 | |
| 300 | 500 | 460 | 410 | 375 | 30-4 | 12-25 | 1145 | 500 | |
| 350 | 550 | 520 | 470 | 435 | 34-4 | 16-25 | 1200 | 550 | |
| 400 | 600 | 580 | 525 | 485 | 36-4 | 16-30 | 1400 | 600 | |
| 450 | 650 | 640 | 585 | 545 | 40-4 | 20-30 | 1500 | 650 | |
| 500 | 700 | 705 | 650 | 608 | 44-4 | 20-34 | 1630 | 700 | |
| 600 | 800 | 840 | 770 | 718 | 48-5 | 20-41 | 1830 | 800 | |
| Z41W-25 | 15 | 130 | 95 | 65 | 45 | 16-2 | 4-14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-14 | 200 | 120 | |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-14 | 215 | 140 | |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 | 260 | 160 | |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-18 | 290 | 200 | |
| 50 | 250 | 160 | 125 | 100 | 20-3 | 4-18 | 345 | 220 | |
| 65 | 265 | 180 | 145 | 120 | 22-3 | 8-18 | 360 | 240 | |
| 80 | 280 | 195 | 160 | 135 | 22-3 | 8-18 | 385 | 280 | |
| 100 | 300 | 230 | 190 | 160 | 24-3 | 8-23 | 430 | 300 | |
| 125 | 325 | 270 | 220 | 188 | 28-3 | 8-25 | 520 | 320 | |
| 150 | 350 | 300 | 250 | 218 | 30-3 | 8-25 | 610 | 350 | |
| 200 | 400 | 360 | 310 | 278 | 34-3 | 12-25 | 765 | 400 | |
| 250 | 450 | 425 | 370 | 332 | 36-3 | 12-30 | 900 | 450 | |
| 300 | 500 | 485 | 430 | 390 | 40-4 | 16-30 | 1130 | 500 | |
| 350 | 550 | 550 | 190 | 448 | 44-4 | 16-34 | 1250 | 550 | |
| 400 | 600 | 610 | 550 | 505 | 48-4 | 16-34 | 1430 | 600 | |
| 450 | 650 | 660 | 600 | 555 | 50-4 | 20-34 | 1520 | 650 | |
| 500 | 700 | 730 | 660 | 610 | 52-4 | 20-41 | 1650 | 700 | |
| 600 | 800 | 840 | 770 | 718 | 56-5 | 20-41 | 1850 | 800 | |
